02. Amazon ECS, Fargate, and ECR

---

🧩 01. ECS (Elastic Container Service)

Amazon ECS is a fully managed container orchestration service that helps you run, stop, and manage Docker containers on AWS.

🚀 Key Features

• Supports Docker containers.
• AWS takes care of starting/stopping containers.
• Integration with:
  • IAM (security & permissions)
  • VPC (networking)
  • ELB (load balancing)
  • ECR (image storage)

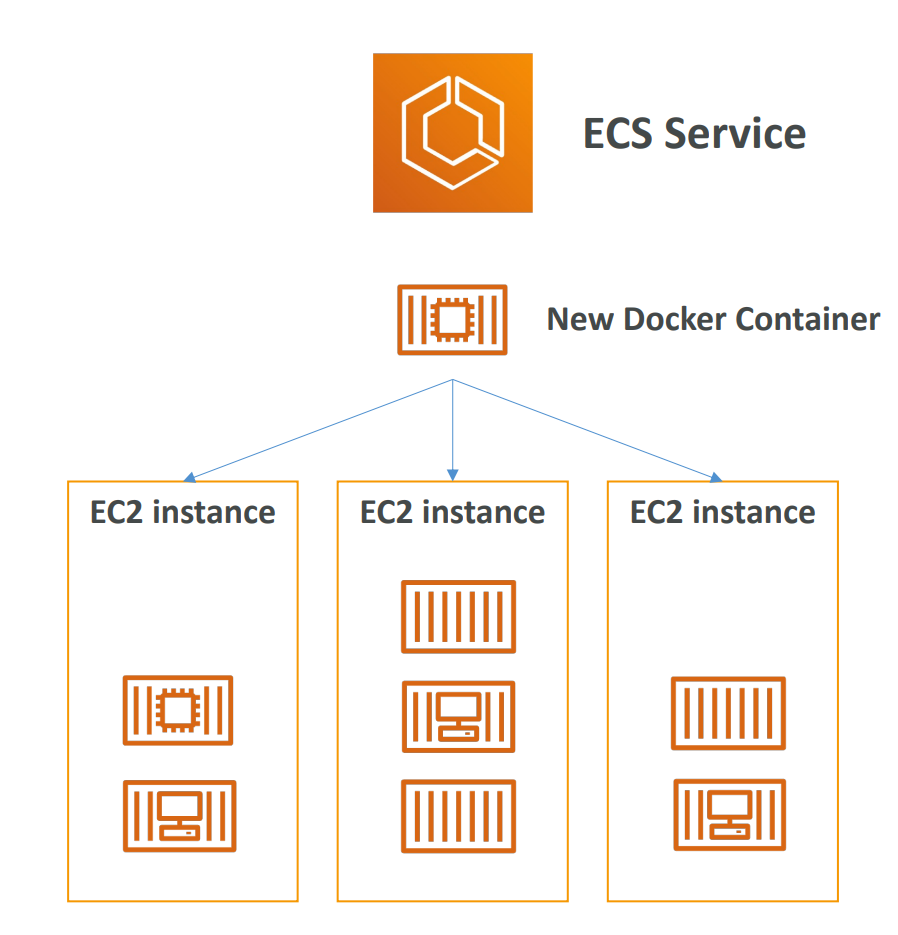

⚙️ Launch Types

Launch Type	Description	Infrastructure Management
ECS on EC2	You provision and manage EC2 instances where containers run.	You manage EC2 instances.
ECS on Fargate	AWS manages the infrastructure — you only specify CPU/RAM.	Fully serverless.

---

⚡ 02. Fargate

AWS Fargate is a serverless compute engine for containers that works with both ECS and EKS.

🔍 Highlights

• No need to manage EC2 instances.
• Pay only for CPU and memory resources used.
• AWS automatically launches and manages containers based on your task definitions.
• Ideal for simplified, scalable, and hands-free container management.

---

🗂️ 03. ECR (Elastic Container Registry)

Amazon ECR is a fully managed Docker container registry that stores, manages, and secures container images.

📦 Features

• Integrated with ECS, EKS, and Fargate.
• Provides private and secure image storage.
• Supports versioning, access control, and image scanning.

🧠 Summary Table

Service	Full Form	Purpose	Managed By	Use Case
ECS (EC2 Launch Type)	Elastic Container Service	Run containers on your own EC2 instances	You	Full control over infrastructure
Fargate	Serverless Container Engine	Run containers without managing servers	AWS	Simplified, serverless containers
ECR	Elastic Container Registry	Store and manage Docker images	AWS	Centralized image storage for ECS/EKS

🧭 Example Workflow

1. Build a Docker image for your app.
2. Push the image to ECR.
3. Deploy it via ECS (EC2 or Fargate).
4. Run and scale containers automatically.

---

🖼️ Architecture Diagram (Conceptual)

+--------------------+
|     Developers     |
+---------+----------+
          |
          v
+--------------------+     +------------------+
|  Amazon ECR        | --> |  Docker Images   |
+--------------------+     +------------------+
          |
          v
+--------------------+
| ECS / Fargate      |
| Runs Containers     |
+--------------------+
          |
          v
+--------------------+
|  Elastic Load      |
|  Balancer (ELB)    |
+--------------------+
