🌍 03. AWS CloudFront

AWS CloudFront is a Content Delivery Network (CDN) that improves content delivery performance by caching content at edge locations globally.

⚡ Key Features

• Faster Content Delivery: Cached at 216+ global edge locations
• Low Latency: Users are served from the nearest edge location
• DDoS Protection: Integrated with AWS Shield and AWS WAF
• Security: Uses Origin Access Control (OAC) for secure S3/backend access
• Global Reach: Improves user experience worldwide

---

☁️ CloudFront Origins

An Origin is the source of your content — the location where CloudFront fetches your files (HTML, images, videos, etc.).

When a user requests content:

• If cached → served instantly from the nearest edge
• If not cached → fetched from origin, then cached for future use

---

🪣 A. Amazon S3 Bucket (Static Origin)

Used for static files like images, CSS, JS, and HTML.

Key Points:

• CloudFront fetches and caches data from S3.
• Use OAC/OAI to restrict access (only CloudFront can read).
• Can be configured as an ingress path to upload via edge → S3.

---

🏗️ B. VPC Origin (Private Applications)

For applications hosted in VPC private subnets

Examples:

• Application Load Balancer (ALB)
• Network Load Balancer (NLB)
• EC2 Instances

Security:

• Connects privately via AWS PrivateLink or VPC endpoints
• Requests pass through CloudFront (WAF, Shield) before backend access

---

🌐 C. Custom HTTP Origin

Used for any HTTP/HTTPS server, inside or outside AWS.

Examples:

• S3 bucket with Static Website Hosting enabled
• On-premises servers
• Other cloud providers

Notes:

• Must support HTTP/HTTPS
• Ideal for hybrid or legacy systems
• Can still apply WAF and Shield protections

---

CloudFront can connect to S3, private VPCs, or any HTTP backend — maintaining high performance, global caching, and strong security.

---

⚖️ CloudFront vs S3 Cross-Region Replication (CRR)

Feature	CloudFront	S3 Cross-Region Replication (CRR)
Purpose	CDN for fast content delivery	Replicates data between regions
Network	AWS Global Edge Network	Requires manual region setup
Data Behavior	Cached temporarily	Copied permanently
Update Frequency	Based on TTL (cache duration)	Near real-time replication
Access	Read-only cached copies	Full replicated copies
Best For	Static content (images, JS, CSS)	Dynamic or synced regional data
Example	Global website delivery	Data backup / multi-region sync

🧠 In short:

• CloudFront = Global caching → fast reads
• S3 CRR = Data replication → regional consistency

---

🚀 CloudFront + S3 Demo

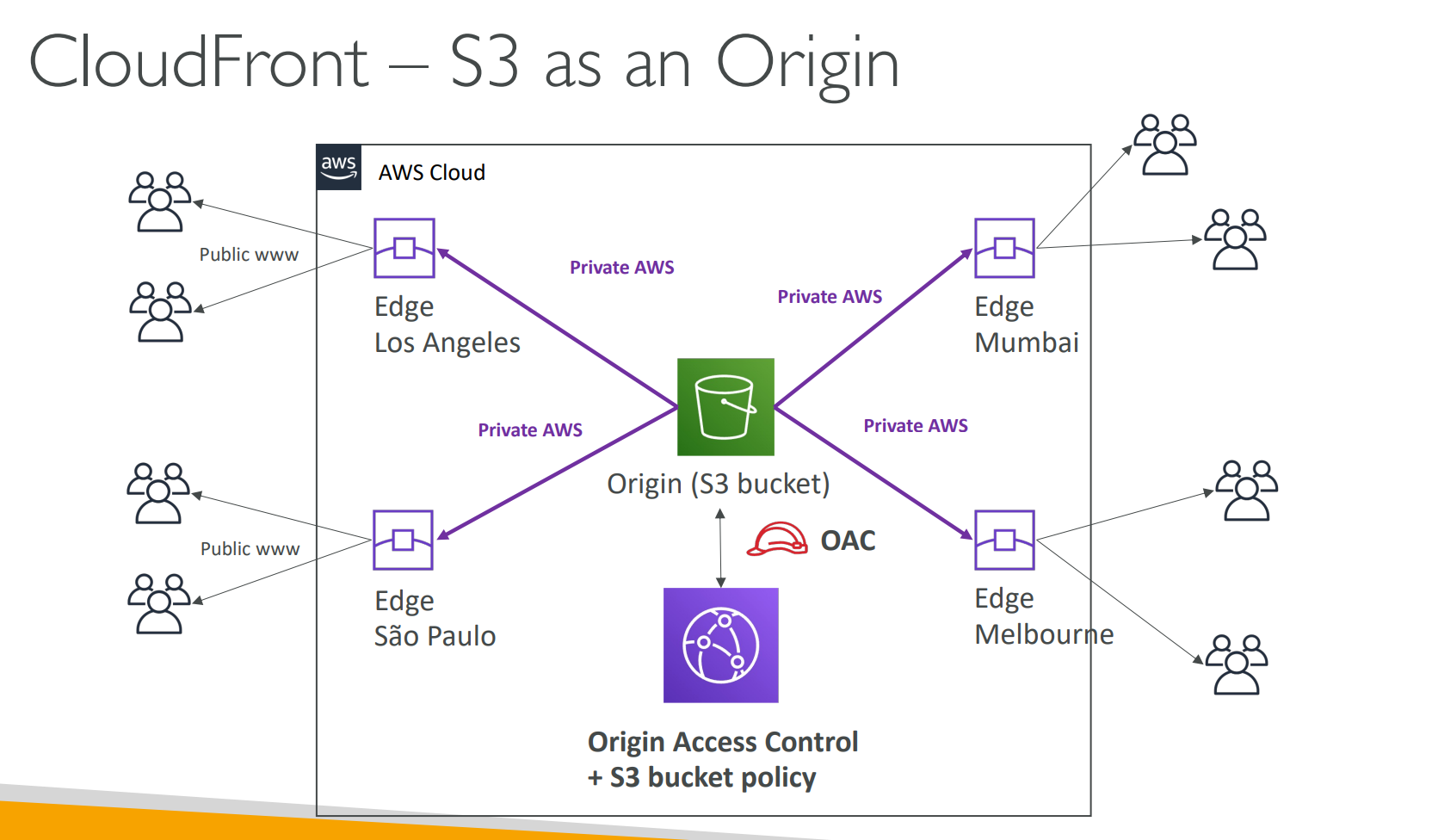

In this demo, we configure CloudFront to serve files securely from a private S3 bucket using Origin Access Control (OAC).

🧩 Step 1: Create CloudFront Distribution

• Open CloudFront → Create Distribution
• Select your S3 bucket as origin (e.g., demo-cloudfront-himanshu-v4)
• Keep Origin Path index.html (files stored in root)

---

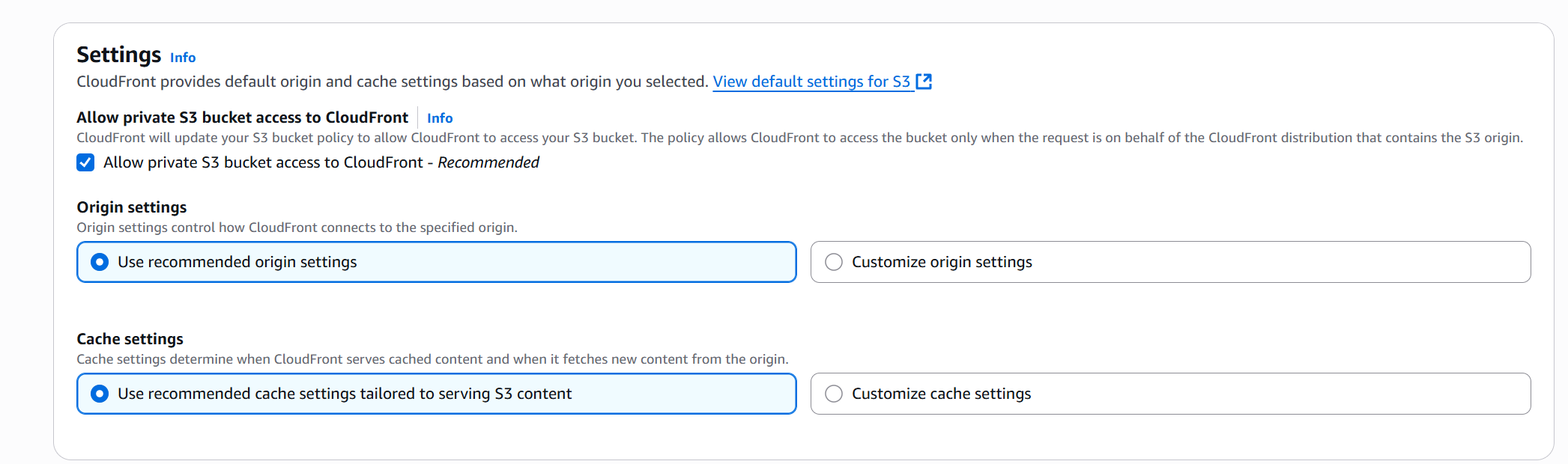

🔐 Step 2: Enable Origin Access Control (OAC)

• Choose Allow, use OAC (Allow private S3 bucket access to CloudFront)

---

⚙️ Step 3: Configure Settings

• Keep default cache behavior and settings
• Disable optional security features (for demo/cost control)

---

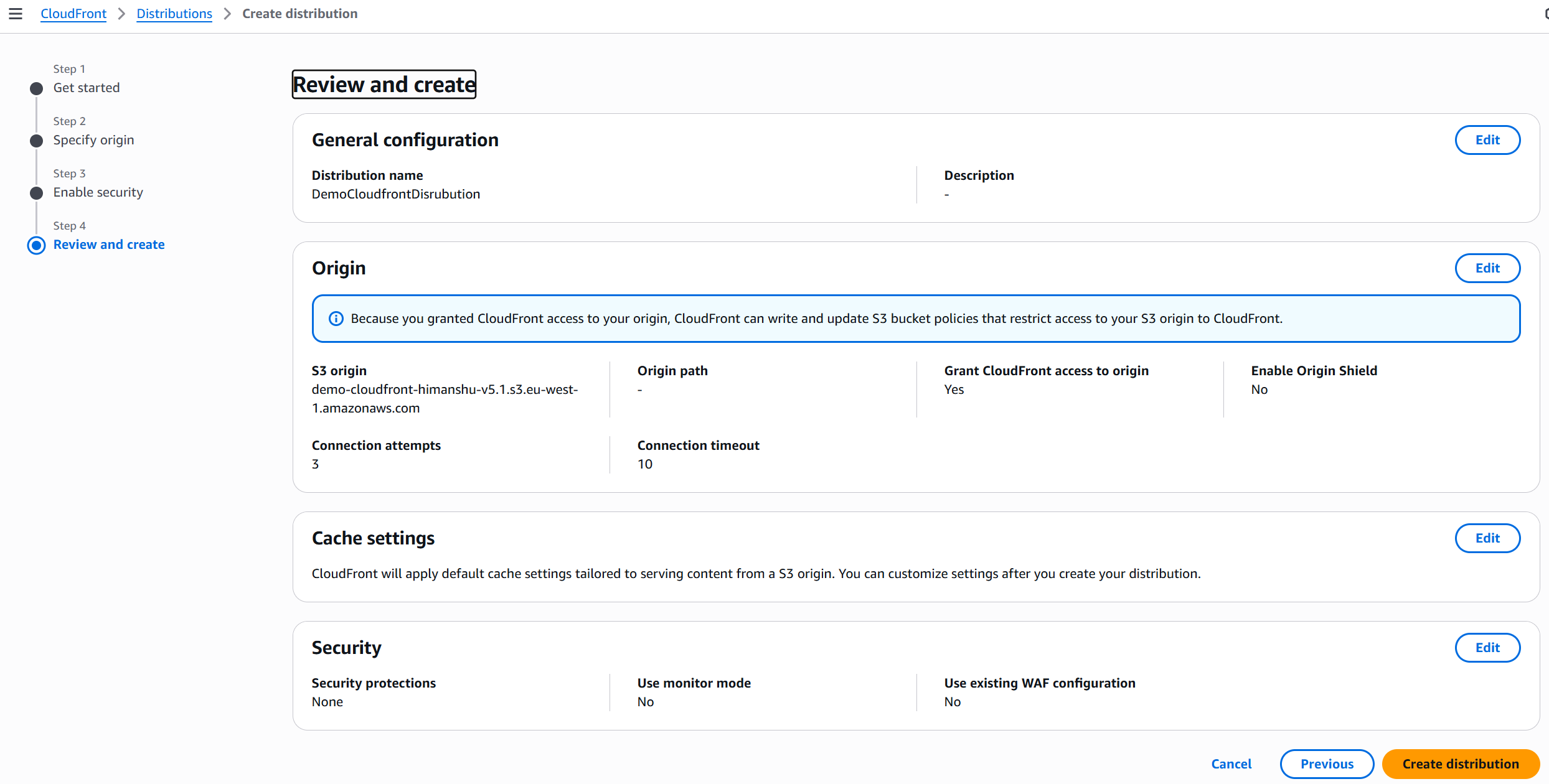

🏗️ Step 4: Deploy Distribution

• Click Create Distribution
• Wait until status = “Deployed”
• CloudFront is now active globally

---

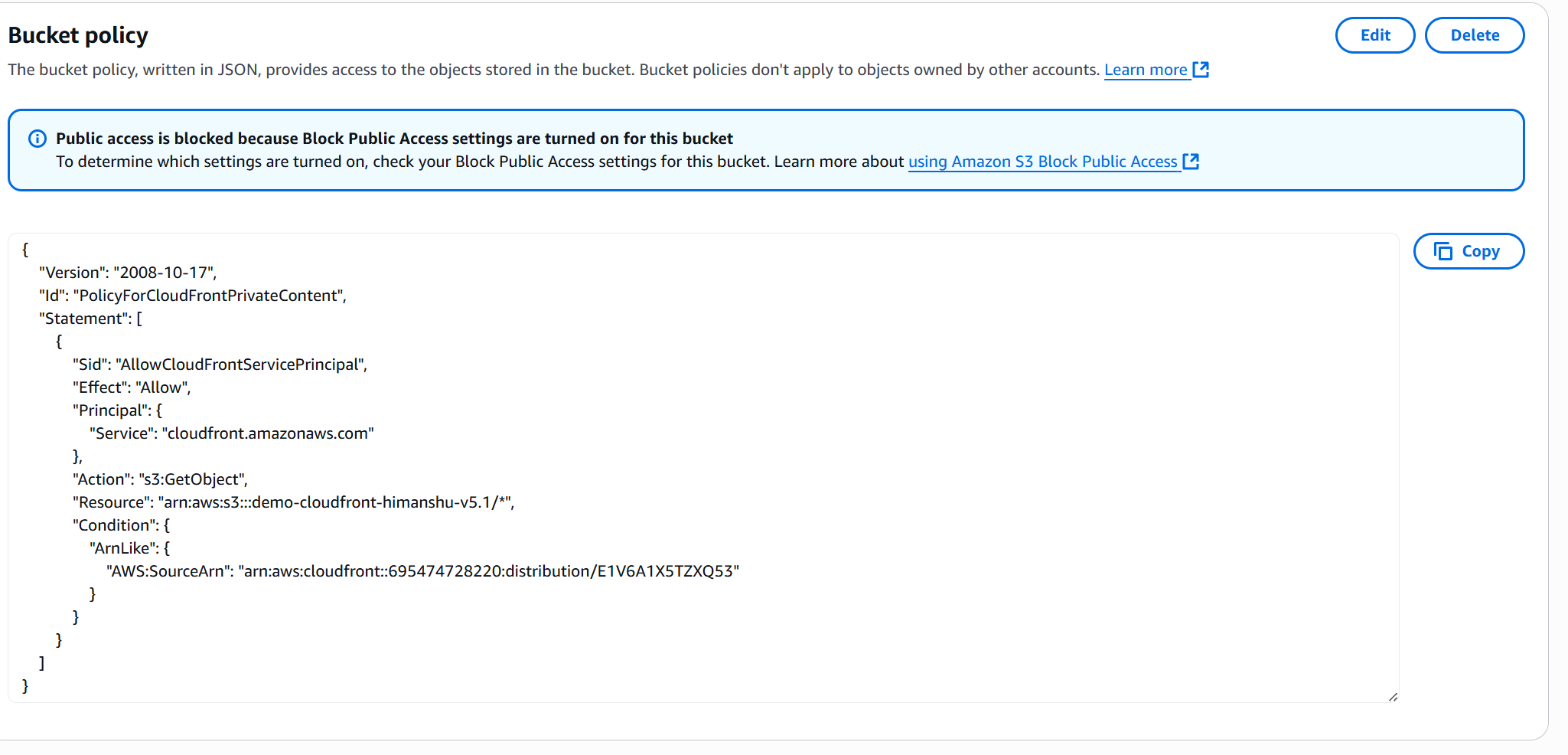

🔍 Step 5: Verify S3 Bucket Policy

• Open S3 → Permissions → Bucket Policy
• Confirm CloudFront automatically added permissions
  (only your CloudFront distribution can read from S3)

---

🌐 Step 6: Test CloudFront Domain

• Copy CloudFront domain (e.g., dxxxx.cloudfront.net)
• Test the URLs:
  • /coffee.jpg
  • /beach.jpg
  • /index.html

✅ Files load successfully — served via CloudFront, not directly from S3.

📈 What Happened

---

• CloudFront created a secure connection to S3 via OAC
• S3 bucket policy was updated to block public access
• Requests flow:
  1. User → CloudFront Edge
  2. CloudFront → S3 (private access)
  3. File cached → Served globally
• Next requests load instantly from the nearest edge location

🏁 Result

✅ S3 bucket stays private
✅ CloudFront serves files securely and globally
✅ Caching boosts performance and reduces cost
✅ Setup is automated and easy to manage
