đŠī¸ 08. Connect On-Premises Data Center to AWS (Hybrid Cloud)
Hybrid Cloud = On-Premises Data Center + AWS Cloud (VPC)
Used when you want secure communication between your local data center and AWS resources.

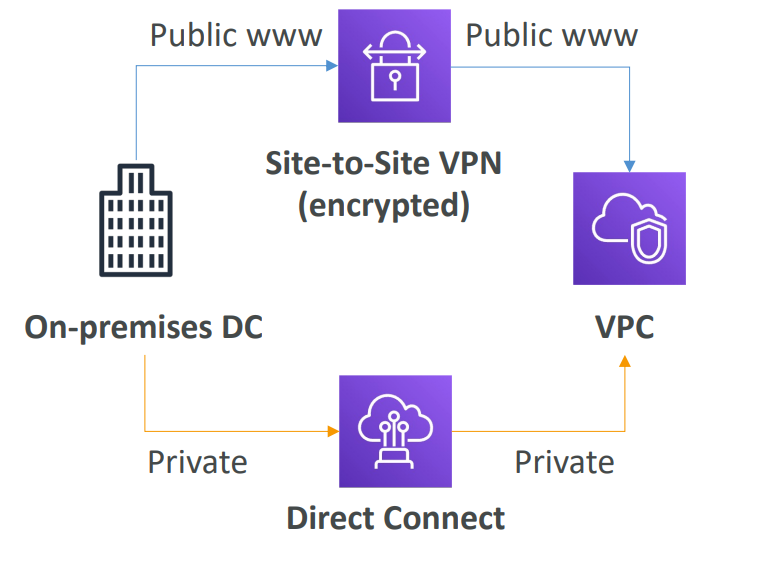

You have two main options to establish this connection:
1. Site-to-Site VPNâ
A Site-to-Site VPN connects your on-premises data center to your AWS VPC over the public internet, using encrypted IPsec tunnels.
| Component | Location | Description |
|---|---|---|
| Customer Gateway (CGW) | On-premises | Your VPN device or software that initiates the VPN connection |
| Virtual Private Gateway (VGW) | AWS | AWS-side VPN endpoint attached to your VPC |
𧊠Characteristicsâ
- Encrypted traffic (IPsec)
- Uses public internet
- Quick setup (~5 minutes)
- Low cost
- Bandwidth limited by the internet connection
- May have slightly higher latency

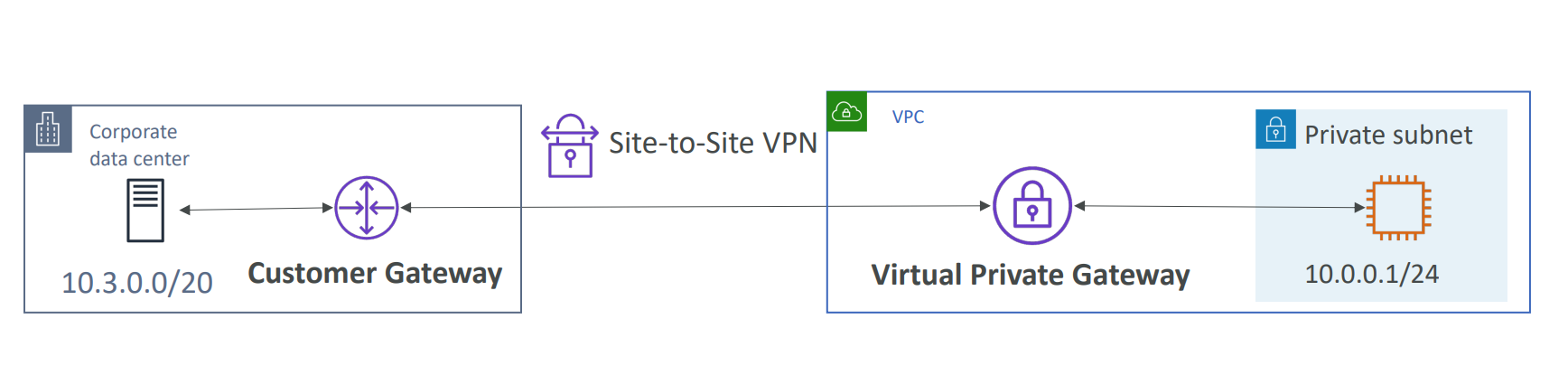

đ§ Exampleâ
2. AWS Direct Connect (DX)â
AWS Direct Connect (DX) establishes a dedicated physical connection between your on-premises data center and AWS.
𧊠Characteristicsâ
- Private and dedicated network connection
- High bandwidth, low latency
- More secure and reliable
- Costly
- Longer setup time (~1 month)
- Requires Direct Connect partner
âī¸ Comparison Tableâ
| Feature | Site-to-Site VPN | AWS Direct Connect |
|---|---|---|
| Connection Type | Over public internet (encrypted) | Dedicated private line |
| Speed | Dependent on internet | High bandwidth |
| Setup Time | Few minutes | Few weeks (~1 month) |
| Cost | Low | High |
| Reliability | Medium | Very high |
| Security | Encrypted over public internet | Private physical link |
| Ideal For | Quick, cost-effective hybrid connection | Stable, enterprise-grade workloads |
đ§ Exam Tipâ
- If you need quick setup â choose Site-to-Site VPN.
- If you need private, high-speed, reliable connection â choose Direct Connect.
- Remember the components for VPN:
đ Customer Gateway (CGW) + Virtual Private Gateway (VGW) = Site-to-Site VPN
